Equipment Trailer Types Explained: Which One Is Right for Your Needs?

Choosing an equipment trailer is not simply a matter of finding enough capacity for the load.

For commercial operators, the right trailer depends on what is being hauled, how it needs to be loaded, overall loaded height, required deck length, axle configuration, route constraints, and how often the equipment will be used for different types of freight.

A 35 Ton mini deck and a 35 Ton detachable gooseneck may carry similar rated capacity, but that does not make them interchangeable. Likewise, an extendable may solve a length problem that a conventional lowboy cannot, while a slide axle or traveling tail can make considerably more sense for equipment that needs to be driven or winched onto the deck.

HD Trailers carries specialized configurations across the 25 Ton to 100+ Ton range, including equipment from manufacturers such as Alpha HD, Kalyn Siebert, XL Specialized, and Fontaine, along with used trailers from established heavy-haul manufacturers. Current inventory can be filtered by trailer type, capacity, manufacturer, neck type, and industry.

So, which equipment trailer type is right for your operation?

The answer starts with understanding what each configuration is designed to do.

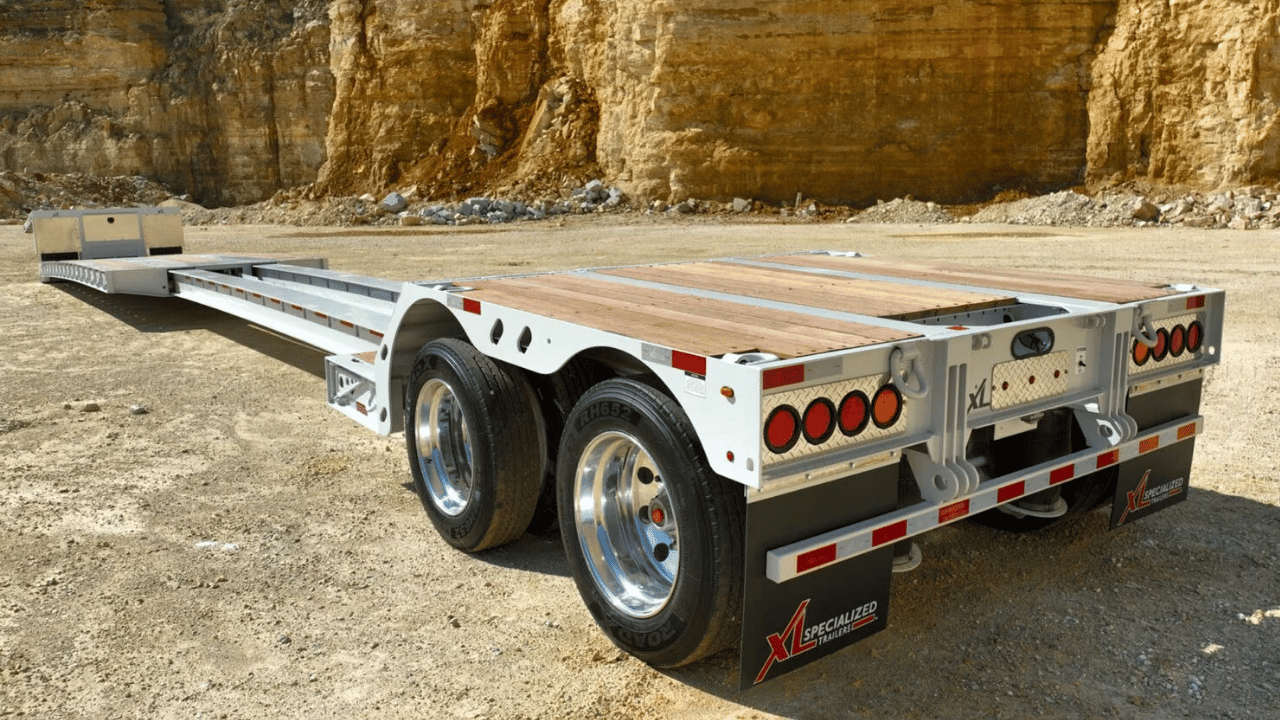

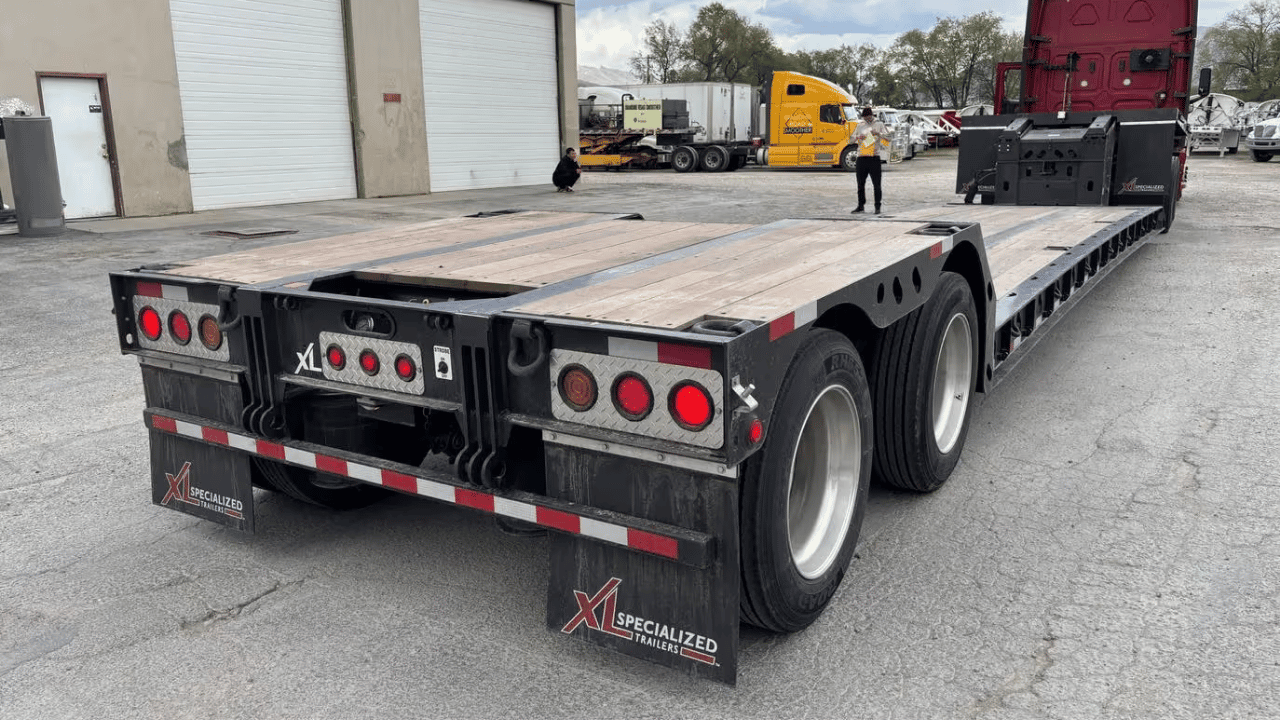

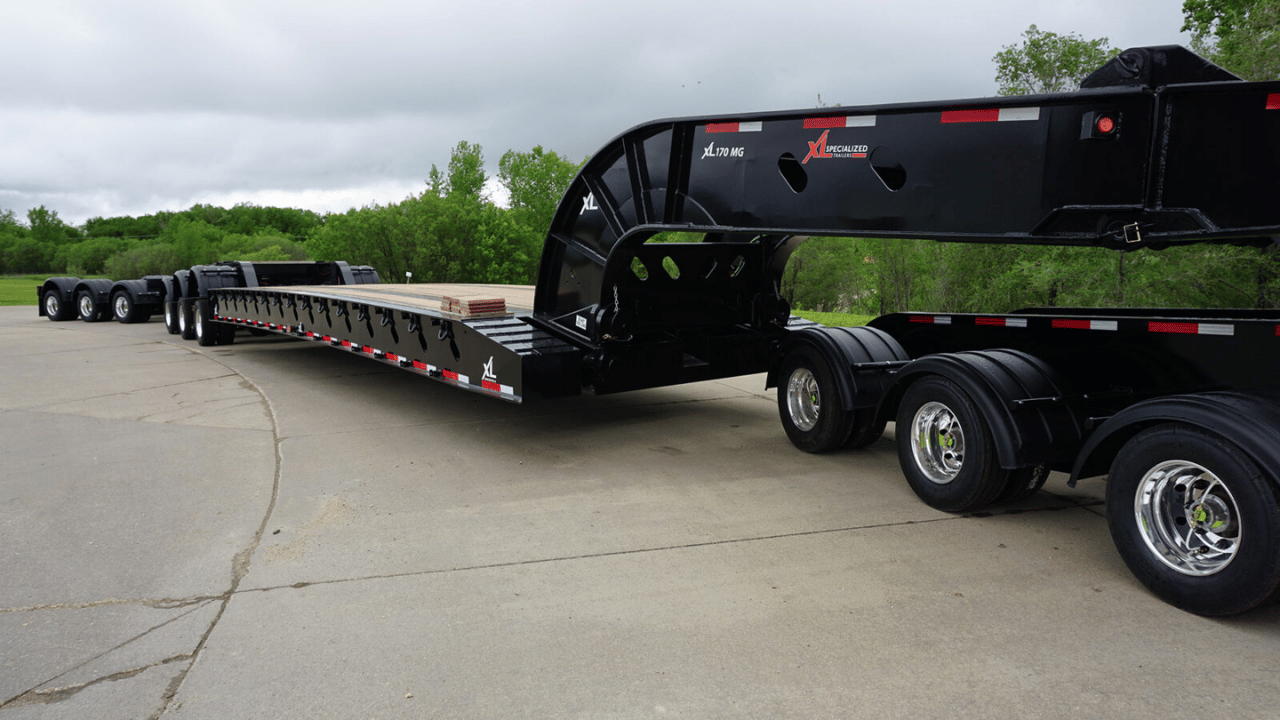

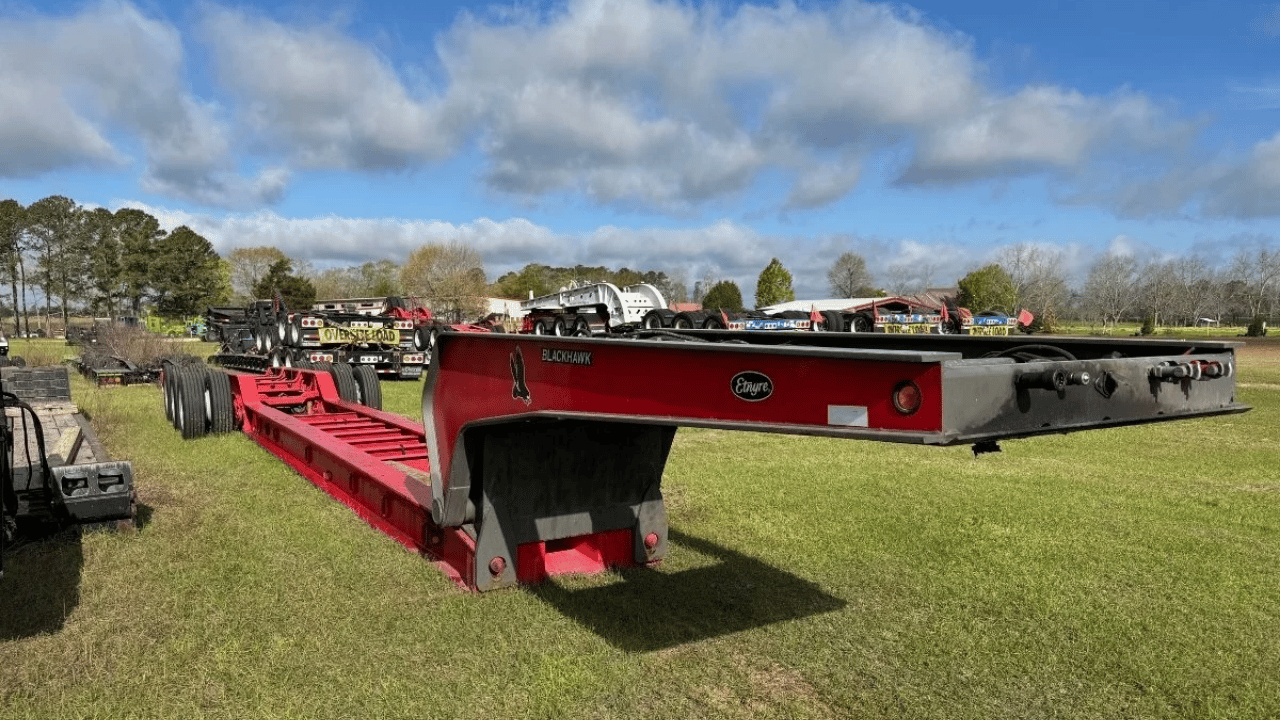

Detachable Gooseneck Trailers (HDG/RGN)

A detachable gooseneck trailer, commonly referred to as an RGN, is one of the most familiar configurations in heavy haul.

The gooseneck detaches from the main deck, allowing the front of the trailer to lower to the ground. Equipment such as excavators, dozers, loaders, and other machinery can then be driven onto the deck from the front rather than loaded over the side or rear.

Hydraulic detachable goosenecks (HDG/RGN) use hydraulic systems to assist with connecting, disconnecting, and raising or lowering the neck. Depending on the configuration, hydraulic power may come from a pony motor, PTO, or tractor wet line.

The low main deck is one of the major advantages of this trailer type. When hauling tall machinery, every inch of loaded deck height can matter when calculating overall loaded height and planning a route.

But not every RGN is the same. Main deck length, loaded deck height, ground clearance, fifth-wheel height, swing clearance, deck width, axle spacing, suspension, and available axle configurations can vary substantially.

Best suited for: excavators, dozers, cranes, construction machinery, agricultural equipment, transformers, and other heavy or tall loads that benefit from front loading and a low deck.

Mechanical Gooseneck Trailers (MRG/MFG)

A mechanical detachable gooseneck, or MRG/MFG, accomplishes a similar basic objective to a hydraulic detachable: the neck separates so equipment can be loaded from the front.

The difference is in how the neck operates.

Mechanical systems rely on the tractor and mechanical engagement rather than hydraulic cylinders to perform the detach-and-connect process. That can make them appealing to operators who prefer a mechanically simpler configuration and do not need the operating characteristics of a hydraulic neck.

The choice between hydraulic and mechanical detachable goosenecks should not be reduced to which system is “better.” Frequency of loading, operating conditions, tractor setup, maintenance preferences, ground conditions, and driver familiarity all matter.

For an operation regularly loading and unloading equipment throughout the week, the convenience of a hydraulic system may carry more weight. Another fleet may prioritize the relative simplicity of a mechanical neck.

Best suited for: heavy equipment applications where front loading and low deck height are important, particularly for operators who prefer a mechanical detachable configuration.

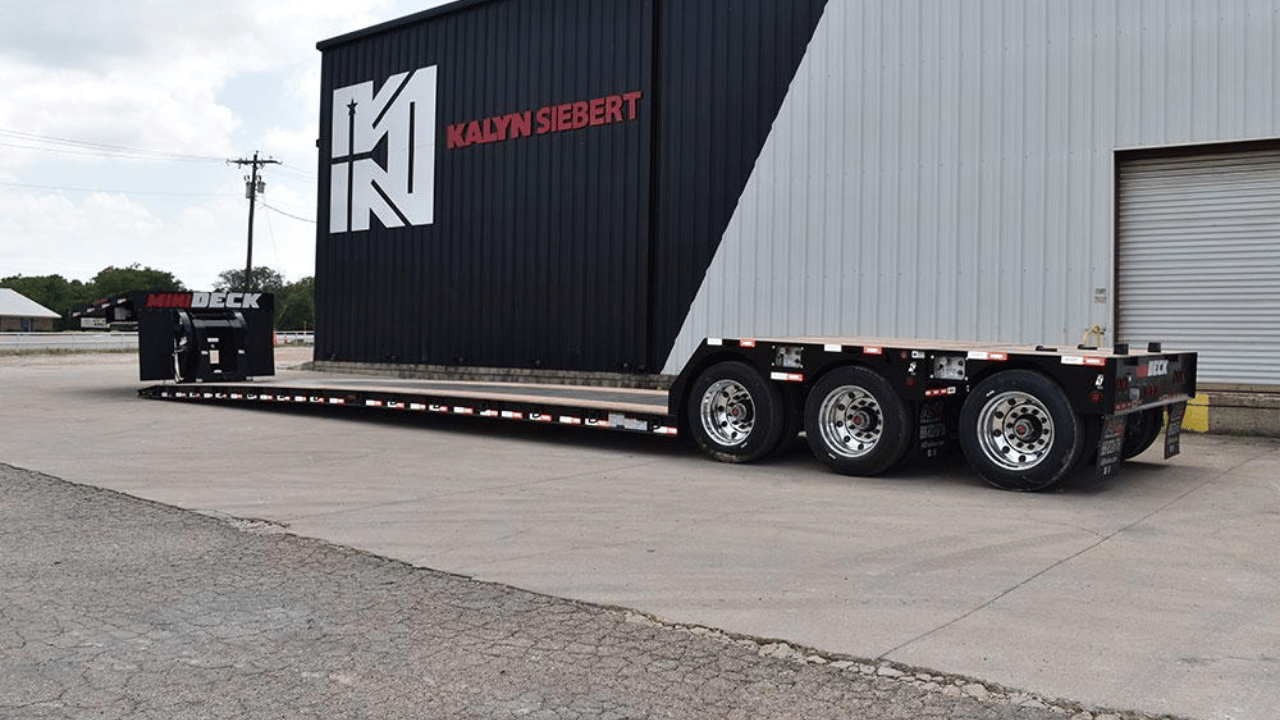

Mini Deck Trailers

When loaded height becomes one of the primary constraints, a mini deck deserves serious consideration.

Mini decks are designed to achieve particularly low loaded deck heights, helping operators keep tall equipment as low as practical. That can be valuable when moving machinery where overall loaded height affects routing, clearance, or permitting considerations.

HD Trailers' current marketplace, for example, includes 30 Ton and 35 Ton mini deck configurations from manufacturers such as Alpha HD and Kalyn Siebert, demonstrating how these trailers occupy a specialized role rather than simply being another version of a conventional lowboy.

That lower deck can involve tradeoffs, however. Operators still need to consider ground clearance, breakover points, well length, loading conditions, and the geometry of the equipment being transported.

A mini deck makes the most sense when the additional height advantage solves a real operational problem.

Best suited for: tall construction and agricultural equipment, machinery, and specialized loads where reducing overall loaded height is a priority.

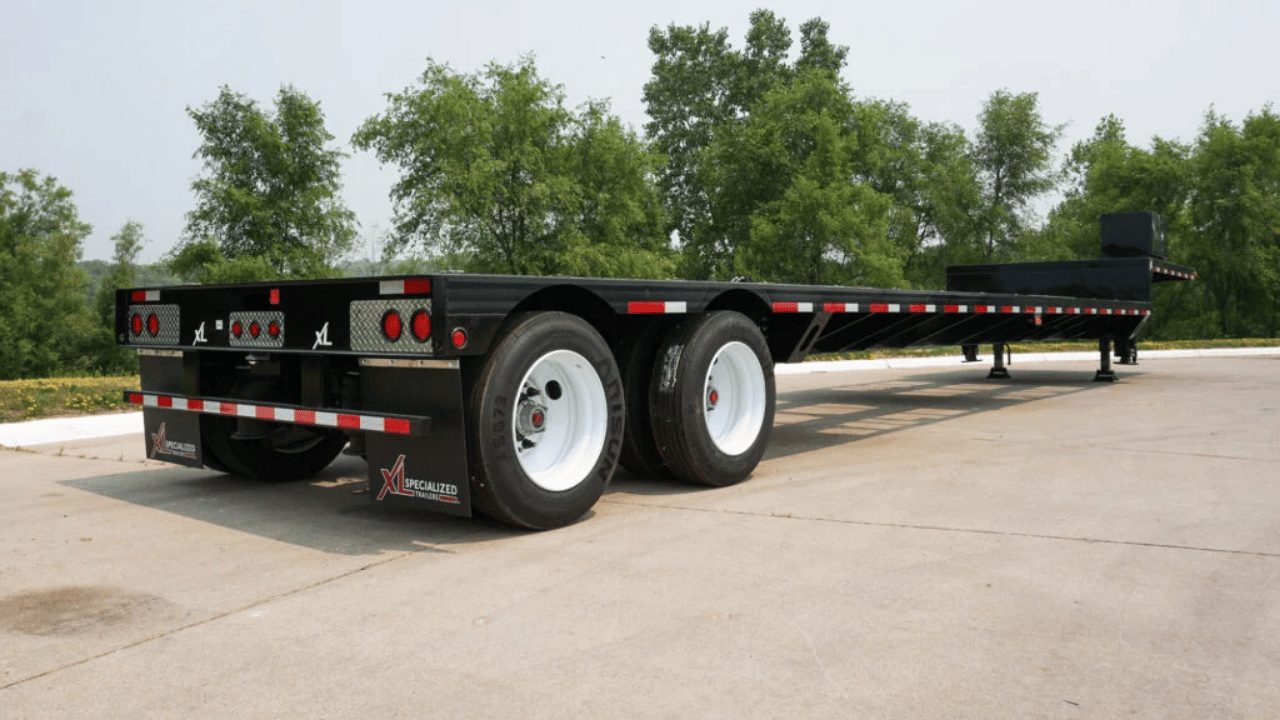

Extendable Trailers

Some loads create a different problem: they are not necessarily unusually tall, but they are long.

An extendable trailer uses a telescoping or expandable main deck to provide additional usable length when required. Depending on the trailer, an extendable configuration can also be combined with a detachable gooseneck and other heavy-haul features.

That flexibility can make an extendable valuable for operators transporting long machinery, structural components, aerospace loads, wind-energy components, or other oversize freight that cannot be properly supported by a standard-length deck.

The extended length is only part of the equation. Operators also need to consider weight distribution, axle spacing, maneuverability, route restrictions, load support points, and how the trailer behaves at its extended length.

HD Trailers' current inventory demonstrates just how broad this category can be, with extendable configurations appearing across multiple capacity classes and manufacturers including Alpha HD, Kalyn Siebert, and XL Specialized.

Best suited for: long equipment, structural loads, wind-energy components, aerospace applications, and oversize freight requiring more deck length.

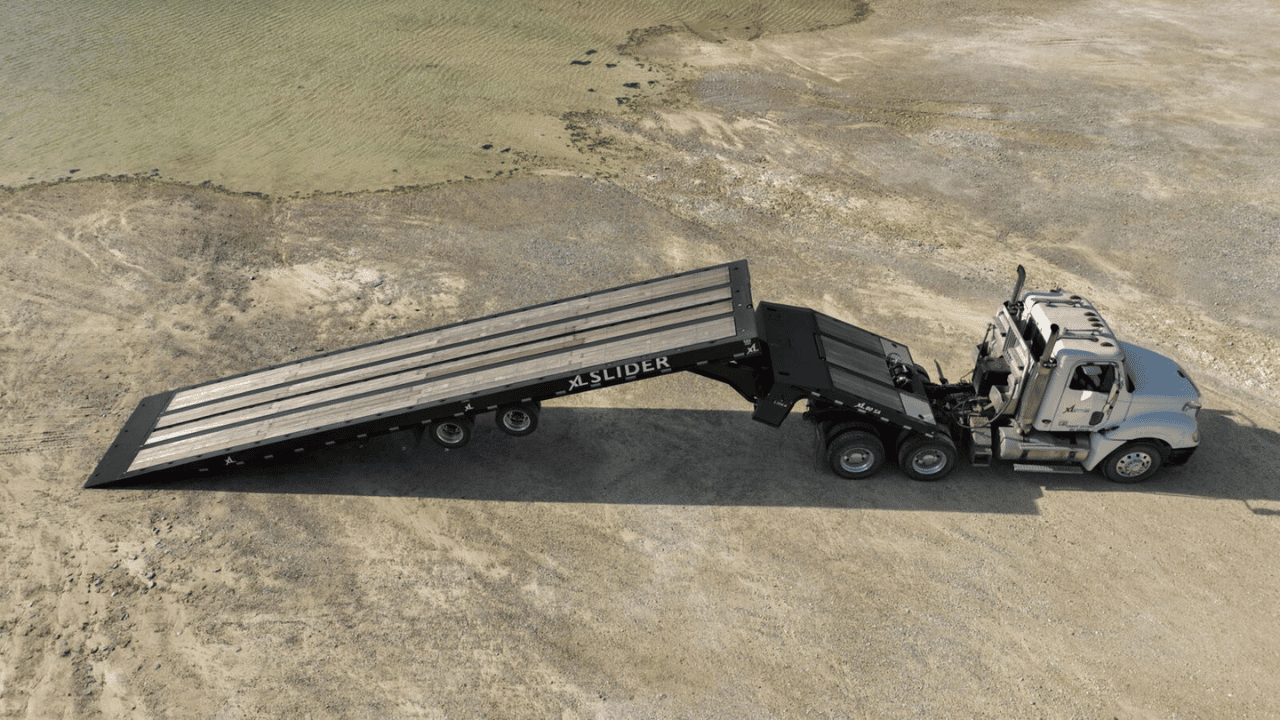

Slide Axle Trailers

A slide axle trailer approaches loading differently.

Rather than detaching the gooseneck, the trailer uses a sliding axle system that allows the deck to lower toward the ground, creating a loading angle for equipment that can be driven or winched aboard.

This can be particularly useful for towing and recovery operations and equipment movers handling machinery or vehicles where straightforward rear loading is valuable.

The key question is not whether a slide axle can carry the load. It is whether its loading method, deck geometry, capacity, and operating characteristics fit the work better than a detachable gooseneck, traveling tail, or another specialized configuration.

Current HD Trailers inventory includes slide axle equipment from Kalyn Siebert in capacities reaching 55 Ton, illustrating that slide axle designs are not limited to light equipment applications.

Best suited for: towing and recovery, machinery transport, equipment that can be driven or winched onto the deck, and operations that frequently load and unload from the rear.

Step Deck Trailers

A step deck uses an upper deck over the tractor connection and a lower main deck behind it.

That drop in deck height provides additional vertical clearance compared with a conventional flatbed while retaining an open-deck design.

For commercial freight operations, that can make a step deck useful when a load is too tall for the deck height of a flatbed but does not require the extremely low well of a detachable lowboy or mini deck.

Step decks can handle a wide range of machinery, construction materials, industrial freight, and agricultural loads. The right application depends on load dimensions, securement requirements, loading method, and route considerations.

Best suited for: taller open-deck freight, machinery, construction materials, agricultural loads, and commercial cargo that benefits from a lower main deck without requiring a detachable neck.

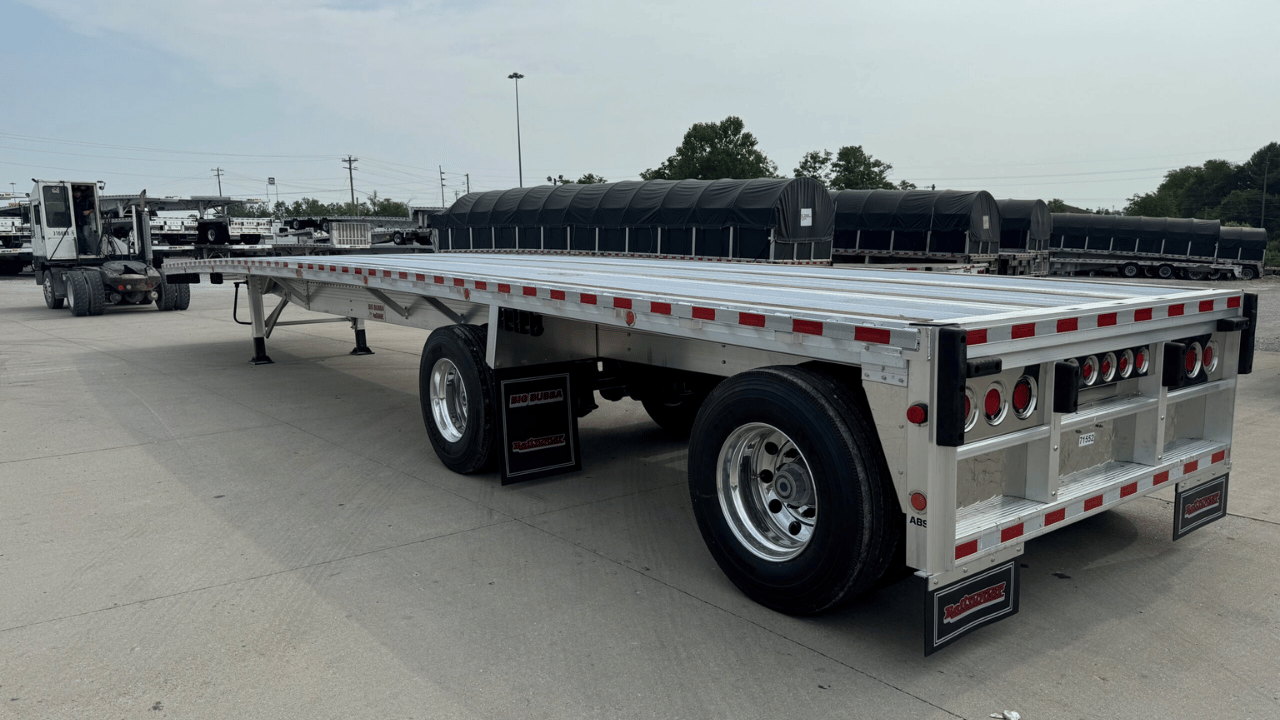

Flatbed Trailers

The flatbed remains one of the most versatile open-deck trailer configurations.

Its relatively simple, level deck makes loading possible from the rear, sides, or overhead, depending on the freight and facility. That flexibility is useful for equipment and materials that do not require the lower deck height or specialized loading systems of an RGN, mini deck, or slide axle.

The limitation is height. Because the deck sits higher than the well of a lowboy or detachable gooseneck, taller equipment can quickly increase overall loaded height.

That is why a flatbed should not be selected simply because the load fits its deck dimensions and weight requirements. The complete loaded profile still matters.

Best suited for: commercial machinery, materials, structural components, agricultural freight, and loads that benefit from open access and do not require an especially low deck.

Lowboy Trailers

“Lowboy” is a broad term, and that is worth understanding when comparing equipment.

A lowboy places the main carrying deck lower than conventional flatbed configurations, making it particularly useful for heavy or tall equipment. Depending on the design, a lowboy may incorporate a detachable gooseneck or other loading arrangement.

The advantage is straightforward: lowering the deck can provide more vertical room for the load before overall loaded height becomes a problem.

But deck height alone should not drive the purchase. Well length, ground clearance, neck design, capacity, suspension, deck width, axle configuration, and how the equipment will be loaded are all part of the decision.

Best suited for: excavators, dozers, construction equipment, agricultural machinery, and other heavy or tall equipment requiring a lower carrying deck.

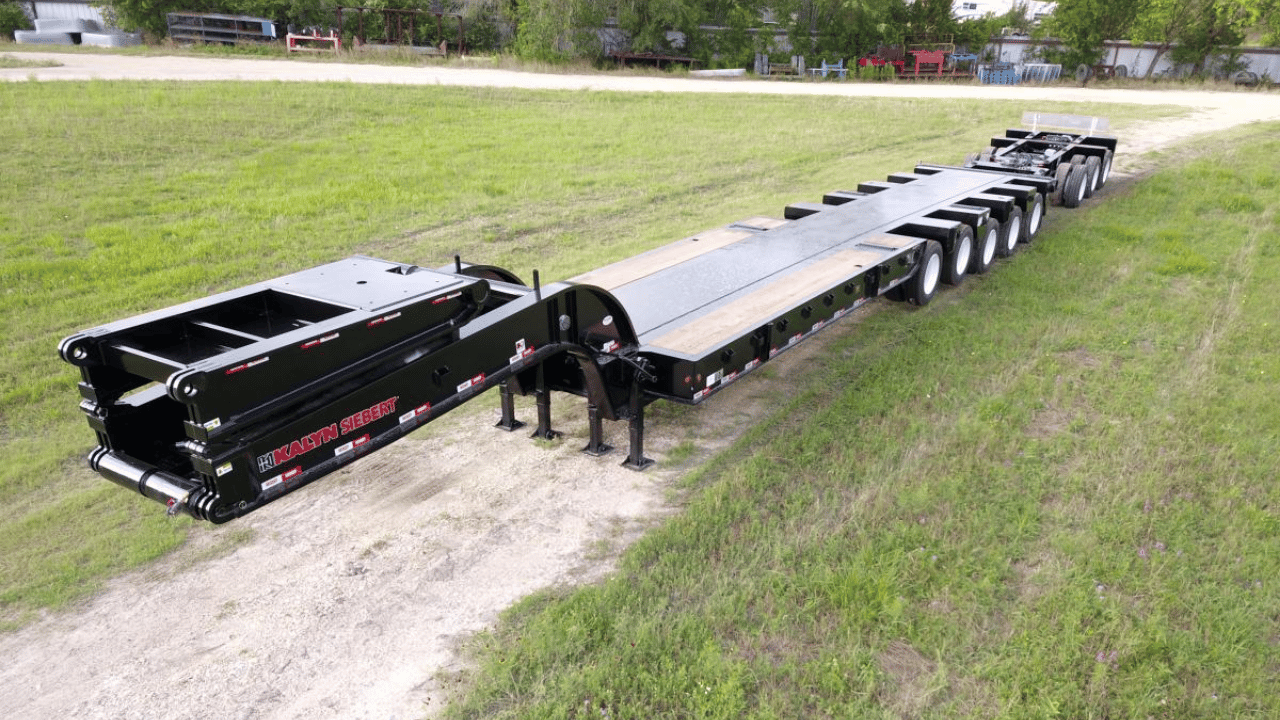

Multi-Axle Trailers

As loads become heavier and more specialized, trailer selection increasingly becomes an axle-distribution problem.

Multi-axle trailers can use configurations extending well beyond conventional tandem or triaxle arrangements. Depending on the trailer and application, operators may work with quad arrangements, 3+1 configurations, flip axles, jeep dollies, spreader components, and other combinations.

The purpose is not simply to add more tires beneath the load. Axle spacing and configuration influence how weight is distributed, which becomes critical when planning heavier loads and complying with applicable route, axle-weight, and permitting requirements.

Federal requirements establish important size and weight parameters for commercial vehicles, while oversize and overweight movements can also be subject to state-specific permits and restrictions. Operators planning these moves can consult the Federal Highway Administration’s commercial vehicle size and weight guidance for federal background and should verify the requirements applicable to each route.

Best suited for: higher-capacity heavy haul, transformers, cranes, large machinery, oversize/overweight freight, and applications requiring more sophisticated axle-weight distribution.

Flip Axles, Jeep Dollies, Spreader Bars, and Deck Extensions

Not every heavy-haul requirement calls for an entirely different trailer.

Sometimes the solution is changing the configuration of the trailer you already have—or selecting a platform designed to accept additional components.

A flip axle can add another axle position behind the trailer. A jeep dolly can introduce axle groups ahead of the main trailer. Spreader bars and related components can change axle spacing and weight distribution, while deck extensions and deck inserts can increase usable length for particular loads.

These components become especially relevant in higher-capacity work where operators need greater flexibility to configure equipment around a particular load and route.

The important point is that these are not interchangeable accessories. Compatibility, engineering, axle ratings, weight distribution, and the intended trailer configuration all have to be evaluated together.

Traveling Tail and Power Tail Trailers

A traveling tail or power tail provides another approach to loading equipment from the rear.

These configurations use a hydraulically operated rear section to create a loading ramp or transition to the ground. They can be useful when moving machinery, vehicles, or equipment that benefits from drive-on or winch-on loading without detaching a gooseneck.

For operators loading frequently, the loading process itself can have a major effect on productivity. A trailer that reduces setup time or makes a particular machine easier to load may be more valuable operationally than another trailer with similar capacity on paper.

Best suited for: towing and recovery, equipment moving, construction machinery, vehicles, and applications requiring frequent rear loading.

Bus Trailers

A bus trailer is purpose-oriented equipment designed around transporting buses and other tall or long vehicles.

These loads create a combination of challenges involving deck height, approach angle, usable length, and loading method. A configuration designed specifically for bus transport can address those requirements more effectively than trying to adapt a general-purpose trailer.

As with other specialized equipment, operators should compare actual dimensions and loading geometry rather than relying on the category name alone.

Best suited for: buses, coaches, tall vehicles, and specialized vehicle transport.

How Do You Choose the Right Equipment Trailer?

The best place to start is the load, not the trailer.

Consider an excavator. Its operating weight may establish the minimum capacity you need, but that still does not tell you which trailer to buy. You also need to know its overall height when positioned on the deck, track length and width, loading geometry, weight concentration, and how frequently it will be loaded and unloaded.

That information may point toward a hydraulic detachable gooseneck. If loaded height is particularly restrictive, a mini deck could make more sense. If the operation regularly moves equipment of varying lengths, an extendable may provide useful flexibility. At higher weights, axle configuration can become just as important as deck dimensions.

The tractor matters too. Fifth-wheel height, wet-line or PTO availability, swing clearance, and compatibility with the trailer all influence how the complete combination will operate.

This is why capacity should be treated as a starting point rather than the entire specification.

Trailer Construction and Suspension Matter Too

Once the general trailer type has been identified, the comparison becomes more detailed.

Heavy-haul trailers may use high-strength steels such as T1, A514, or 130K material, with Apitong or steel decking depending on the design and application. Suspension options can include Air Ride, Walking Beam, and Spring configurations.

Deck widths commonly range from 96 to 120 inches depending on the trailer and application, while axle count, spacing, lift-axle capability, main-deck length, ground clearance, and loaded deck height can vary substantially even within the same broad trailer category.

Those differences explain why two trailers with the same rated capacity may perform very differently in the field.

The Right Trailer Is the One That Fits the Work

There is no single “best” equipment trailer.

A detachable gooseneck can be an excellent solution for an excavator fleet and the wrong tool for an operation primarily moving long structural freight. An extendable can create valuable flexibility for oversize loads without providing the loading advantages another operator needs. A mini deck can solve a critical height problem that does not exist for a different fleet.

The objective is to identify the configuration that fits the loads, routes, tractors, loading conditions, and growth plans of the operation.

That means looking beyond tonnage.

Deck height, well length, ground clearance, neck type, axle configuration, suspension, loading method, deck width, and available extensions all help determine whether a trailer will actually perform the work expected of it.
